ComPass D

Fault direction indicator with monitoring and control function via Ethernet

The ComPass D is particularly suitable for use in central substations in the medium-voltage grid that have a telecontrol connection. In addition to the short-circuit and earth fault functions, the ComPass D collects high-precision measured values for current, voltage and power from the station and makes them available for transmission to the control room.

A PT-100 sensor can also be used to monitor the transformer or station temperature, for example. Limit values can also be defined for all measured values, which can also be provided as alarms for the control room. Voltage coupling/measurement takes place capacitively via the VDIS system* and/or via resistive (ohmic) voltage sensors.

With simultaneous measurement, the voltage measurement can be automatically calibrated with the resistive voltage measurement via the VDIS system. Up to five ComPass can be connected to a set of resistive voltage sensors.

* VDIS according to IEC62271-213, current standard as of 08/2023

Product features

  • Remote control option for 2 switching elements
  • Communication via Ethernet with IEC 60870-5-104 protocol
  • Clear error display and reading option on site:
    2 directional arrow LEDs (A, B) and high-contrast OLED display
  • Highly accurate current and voltage measurement with 0.5 %
  • Monitoring of the variables voltage (U), current (I), load flow direction
    (A↑ or B↓ )
  • Power factor (cos φ), power (P, Q, S), energy (E), temperature (T) and frequency (f)
  • Suitable for all mesh types/star point treatments
  • Earth fault detection with six different earth fault location methods,
    can also be combined
  • Voltage coupling to capacitive and resistive (ohmic) sensors
  • Limit value monitoring and remote signaling: U, I, P, Q, T
  • Commissioning via USB connection with support for the ComPass
    Explorer and ScadaData configurator software
  • Freely assignable binary inputs for recording and transmitting
    relevant status information from the system/station
  • Freely programmable logic for defining the switching conditions

OLED display for good readability

Mini-USB port for easy parameterization and commissioning

Quick and easy to operate rocker switch

Indication of measured values and configuration via the display

Error direction display

Your added value

  • Fast error direction detection
  • Highly accurate current and voltage monitoring
  • Detection of limit violations
  • Availability of measured values in the control room and on site
  • Can be controlled remotely from the control room using the IEC 60870-5-104 protocol
  • Automatic self-calibration of the capacitive voltage inputs, optionally with temperature compensation

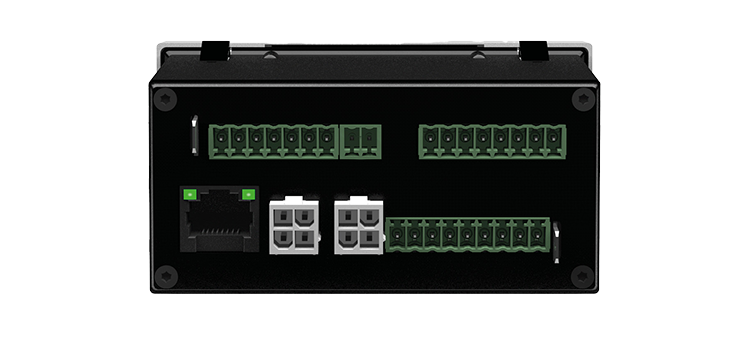

PT100 input

Relay outputs (6) and low-voltage connection (2)

Binary inputs

Ethernet

Resistive voltage sensor (output)

Wega connection

Resistive voltage sensor (input) and current sensor connection

Earth connection cable (6.3 mm blade terminal)

Technical data

ComPass D
Short-circuit indicator
Earth fault indicator
Earth fault location methodContinuous earth fault, earth short circuit, earth fault wiper, cos φ, sin φ, pulse location
Measured values / display
  • Conductor currents I1, I2, I3, IE with phase angle
  • Phase-to-earth voltage U1, U2, U3, UNE and phase-to-conductor voltage U12, U23, U31, UNE with phase angle
  • Load flow direction A↑ or B↓
  • Power P, Q, S and cos φ (P1,2,3, Q1,2,3, S1,2,3, cos φ 1,2,3 via RS485)
  • Active energy quantity, separately for load flow direction A↑ or B↓; additionally per phase
  • Operating current, I 1,2,3, S, P, Q, U12, U23, U31, Ø value adjustable (1 – 60 min), I max. 24 h / 7 days / 365 days,
  • Slave pointer function I max. LR , U12 max LR, U23 max LR, U31 max LR, Smax LR, Pmax LR, Qmax LR, Tmin LR, Tmax LR (LR = since last reset)
  • Mains frequency f
  • Temperature T
I>> Response values short-circuit currentDIP: 400, 800, 1,000, 2,000 A, self-adjustment: 10 – 2,000 A
IES> / IES>> Response values earth fault current10 – 1,000 A tIES> / tIES>> Response delay: 40 ms – 60 s
IET> Response values earth fault wiper method10 – 500 A
IEP> Response values active residual current cos φ / IEQ> Response values reactive current sin φ1 – 200 A tIEP> / tIEQ> Response delay: 40 ms – 60 s
ΔIE> Response values for pulse detection (clock stroke)1 – 200 A
UNE> Response values Permanent earth fault1 – 100 % tUNE> Response delay: 40 ms – 60 s
Limit value monitoring
I> Overcurrent5 – 1,500 A tI> Response delay: 40 ms – 60 s
U> Overvoltage100 – 200 % tU> Response delay: 40 ms – 60 s
U< Undervoltage1 – 100 % tU< Response delay: 40 ms – 60 s
P> / P>> / +P> / -P> Active power1 – 30,000 kW tP> / tP>> / +tP> / -tP> Response delay: 40 ms – 60 s
Q> / Q>> / +Q> / -Q> Reactive power1 – 30,000 kW tQ> / tQ>> / +tQ> / -tQ> Response delay: 40 ms – 60 s
T< / T<< / T> / T>> Temperature-40 °C to +85 °C
Measuring accuracy phase currentsUp to 0.5 % / 0.5 A closed sensor type, ≤1 % / 0.5 A divisible sensor type
Measuring accuracy voltagesUp to 0.5 % in the range 80 – 120 %/Un (resistive)
DisplayLED error message and status displays (multicolor)
OLED display (trilingual)
Remote notification / communication
  • 4 potential-free, freely programmable relay contacts
  • Ethernet / IEC 607-5-104
ParameterizationUSB connection with ComPass Explorer software
Remote signaling contact4 permanent or wiping contacts, bistable,
NC or NO contact
Contact rating: 250 V AC/6 A; 30 V DC/6 A
Binary inputs6, freely programmable, max. 30 V DC
Reset
  • Via rocker switch
  • Remote reset
  • Automatic time reset: 1 min – 24 h
  • Via Ethernet with IEC 60870-5-104 protocol
  • Current restoration
  • Voltage restoration
  • Auxiliary voltage recovery
  • ComPass Explorer Software
Supply
External auxiliary voltage24 V AC / DC
Internal power supplyLong-life lithium cell, service life ≥20 years, >900 h total flashing time
HousingPolycarbonate, IP50
Temperature range-30 °C to +70 °C
