Orion M1

Combined voltage test and display system with LCD display

Orion M1 is a mobile test and display device for voltage testing, phase comparison and coupling part testing in accordance with IEC 61243-5 on LRM and HR interfaces for medium-voltage switchgear. The robust test device is ideal for flexible use on site. Thanks to its ergonomic design and compact housing, the system is easy to transport and handle. The integrated safety functions, such as automatic self-testing and clear visual and acoustic signaling, guarantee maximum operational safety for the operating personnel.
The Orion M1 also features a large, illuminated LCD display. This makes it possible to read measured values in accordance with EN 50160 such as interface current, phase angle and harmonics. The stored measurement results can be read out via the integrated USB interface and are available for evaluation. In addition to information on the next repeat test and the battery status display, the Orion M1 has the option of selecting the menu language (German/English) and the mains frequency (16.7 Hz / 50 Hz / 60 Hz).

Product features

  • According to IEC 61243-5 (VDE 0682-415)
  • Interface tester
  • Rotating field direction indicator with status RGB LED
  • Robust design: rubber coating for improved impact resistance
  • Harmonic and current measurement
  • Phase angle measurement
  • LCD display
  • Readable measured value memory
  • Data transfer via USB interface
Portable, compact voltage tester with digital readout and display, integrated measuring device and safe test probes, designed for mobile applications and on-site electrical measurements.

Voltage display according to IEC 61243-5

Integrated rotating field direction indicator

High-contrast, illuminated display for measured values

Capacitive interface

  • Precise current measurement in μA (2 x CH)
  • Voltage test symbols for both channels
  • Repeat testing of coupling parts
  • Rotating field direction indicator
  • Set frequency and battery status

Voltage quality

  • FFT (Fast Fourier Transformation)
  • THD total distortion [%]
  • Harmonics up to the 40th harmonic [%]
  • Bar chart of the individual harmonics [%]

Phase comparison

  • Phase difference angle
  • Symbol phase equality / phase inequality
  • Rotating field direction indicator

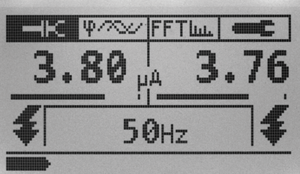

Example of a display of a mobile voltage tester. You can see a voltage figure on the left and right and the 50Hz display in the middle.
Display capacitive interface
Example of a display of a mobile voltage tester. You can see harmonics, i.e. an x/y table with deflection of values
Harmonic display

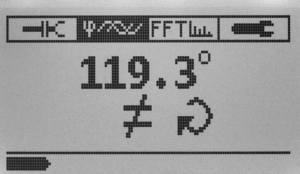

Possible display of a mobile voltage tester with a temperature display of 119.3 °
Display phase comparison

Technical data

Orion M1
Nominal frequency16.7 Hz, 50 Hz or 60 Hz
Input impedance2.0 MΩ (±2 %)
Response threshold voltage test2.1 µA or 4.2 V at 2.0 MΩ / 50 Hz
Response threshold Phase comparisonPhase angle |±20°|
Response threshold coupling part test3.2 µA or 6.4 V at 2.0 MΩ / 50 Hz
Current measurementMeasuring range 1: 0 – 5 μA (±2 %)
Measuring range 2: 0 – 25 μA (±2 %)
Phase angle measurementMeasuring range: -180° – +180° (±1 %)
Harmonic measurementBar chart: 0 – 5 % / 0 – 10 %
THD: 0 – 100 % (±1 %)
Harmonics (2-40): 0 – 100 % (±1 %)
Power supply4 AA cells / LR6 or AA 1.5 V
Operating life6 years, 1,000 standby cycles/year
Protection classIP54
Housing dimensions220 mm x 100 mm x 40 mm
Weight450 g (incl. batteries)
Operating temperature-25 °C to +55 °C

All important documents for the device

Do you need additional information about our device? In our download area you will find all relevant documents such as brochures and product catalogs, technical reports, operating instructions and dimensional drawings (login required). Simply click on the download area to obtain the documents you require.

Matching articles

PERFECT MATCH

Here you will find the matching equipment set and accessories for this item. All components are technically matched to each other and guarantee optimum functionality. For customer-specific requirements and individual offers, please contact our sales department.

Equipment set

  • 1 display unit incl. plastic case,
    measuring cable set, 2 HR / LRM adapters, magnetic holder, USB cable, user software

Accessories

  • Special adapter (HR / IVIS)
  • LR-LRM adapter
  • Weva adapter Orion, 104 mm
  • Weva adapter Orion, 130 mm
