Orion 3.1
Combined voltage detecting and display system
Orion 3.1 is a mobile test and display device for voltage testing, phase comparison and coupling part testing in accordance with IEC 61243-5 on LRM and HR interfaces for medium-voltage switchgear. The robust test device is ideal for flexible use on site. Thanks to its ergonomic design and compact housing, the system is easy to transport and handle. The integrated safety functions, such as automatic self-testing and clear visual and acoustic signaling, guarantee maximum operational safety for the operating personnel.
Product features
- According to IEC 61243-5 (VDE 0682-415)
- Interface tester
- Rotating field direction indicator with status RGB LED
- Robust design: rubber coating for improved impact resistance
Voltage display according to IEC 61243-5
Integrated rotating field direction indicator
LRM measuring lead set
- The measuring cable set consists of two measuring cables. One side is fitted with a plug connection for connection to the VDS with LRM interface. The second side has a BNC connector for connection to the Orion 3.1
BNC connector
LRM plug connection

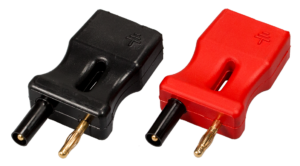

HR-LRM adapter
- For voltage testing of HR interfaces, the corresponding HR-LRM adapter is plugged onto the connectors on the LRM test lead set.
Technical data
| Orion 3.1 | |
|---|---|
| Nominal frequency | 16.7 Hz, 50 Hz or 60 Hz |
| Input impedance | 2.0 MΩ (±2 %) |
| Response threshold voltage test | 2.1 µA or 4.2 V at 2.0 MΩ / 50 Hz |
| Response threshold Phase comparison | Phase angle |±30°| |
| Response threshold coupling part test | 3.2 µA or 6.4 V at 2.0 MΩ / 50 Hz |
| Power supply | 4 AA cells / LR6 or AA 1.5 V |
| Operating life | 6 years, 1,000 standby cycles/year |
| Protection class | IP40 or IP54 |
| Housing dimensions | 220 mm x 100 mm x 40 mm |
| Weight | 380 g (incl. batteries) |
| Operating temperature | -25 °C to +55 °C |
All important documents for the device
Do you need additional information about our device? In our download area you will find all relevant documents such as brochures and product catalogs, technical reports, operating instructions and dimensional drawings (login required). Simply click on the download area to obtain the documents you require.
Matching articles
PERFECT MATCH
Here you will find the matching equipment set and accessories for this item. All components are technically matched to each other and guarantee optimum functionality. For customer-specific requirements and individual offers, please contact our sales department.
Equipment set
- 1 display unit incl. plastic case,
measuring cable set, 2 HR / LRM adapters
Accessories
- Special adapter (HR / IVIS)
- Magnetic holder
- LR-LRM adapter
- Weva adapter Orion, 104 mm
- Weva adapter Orion, 130 mm
Other voltage testing and display systems
Orion M1
- Voltage and phase tester according to IEC 61243-5 (VDE 0682-415)
- Harmonic and current measurement, phase angle measurement
- LCD display
